Micro Cilia DIY



If you have a difficult time printing the regular spice rack. This is an alternate simpler design which may be printed as an alternative.

In your Package you should find:

  • PCB Bag

    • Micro Cilia PCB

  • PCB Fasteners bag

    • 2 M3 Brass inserts

    • 2 Paper Washers

    • 2 M3 Screws

  • Fan fasteners bag

    • 16 M2 Brass inserts

    • 16 M2x12mm screws

  • 8 20mmx10mm Fans

  • Harness bag

    • 2 M4 heat set insert

    • 1 1/4-20 heat set insert

  • Spice rack bag

    • 3 magnets

    • 3 tinner rivets

  • Hinge bag

    • 2 M3 threaded insert

    • 2 M3 thumb screws

  • Straps bag

    • 1 long straps

    • 2 short straps

  • Buckles bag

    • 2 buckle sets

    • 6 tri glide slides

  • Scents

  • USB cable

Tools Needed

  • Soldering Iron

  • Heat Set Insert Tips (M4, M3, M2, 1/4-20)

  • Phillips Screw Driver

  • Flat Head Screw Driver

  • 3D Printer

  • Super Glue

  • Pliers (Optional)

3D Printing

  1. Dowload all Files above.

  2. 3D print above files with PETG. Recommended Print Settings:

    • 240°C HotEnd

    • 70-80°C Bed

    • Recommended to use a 0.4mm nozzle

    • 0.2 mm layer height.

    • 4 outer shells

    • 20 % infill.

    • Tree supports for the main body

    • Regular supports with a 45 degree overhang angle touching build plate for Spice Rack

Figure 1 - Melt two M3 Brass Inserts from “PCB Fasteners” bag into main body.

Figure 2 - Insert PCB from “PCB” bag over the two Brass inserts.

Figure 3 - Place two red paper washers onto two M3 Screws.

Figure 4 - Screw two M3 Screws through PCB into brass inserts.

PCB Fasteners and PCB

  1. Melt two M3 Brass Inserts from “PCB Fasteners” bag into main body (Figure 1).

  2. Insert PCB from “PCB” bag over the two Brass inserts (Figure 2).

  3. Place two red paper washers onto two M3 Screws (Figure 3).

  4. Screw two M3 Screws through PCB into brass inserts (Figure 4).

  5. Hold onto Jumper for programming PCB.

Figure 5 - Melt 16 M2 Brass Inserts from “Fan Fasteners” bag into main body.

Figure 6 - Insert Fans from “Fans” bag over the M2 Brass Inserts.

Figure 7 - Screw fans in place with 16 M2x12mm screws. Make sure the thread wire through opening into the PCB compartment.

Figure 8 - Plug Fans into PCB.

Fan Fasteners and Fans

  1. Melt 16 M2 Brass Inserts from “Fan Fasteners” bag into main body (Figure 5).

  2. Insert Fans from “Fans” bag over the M2 Brass Inserts (Figure 6).

  3. Screw fans in place with 16 M2x12mm screws. Make sure the thread wire through opening into the PCB compartment (Figure 7).

  4. Plug Fans into PCB (Figure 8).

Figure 9 - Melt two M4 and one 1/4-20 heat set inserts from “Harness” bag into harness part

Harness

  1. Melt two M4 and one 1/4-20 heat set inserts from “Harness” bag into harness part (Figure 9).

Figure 10 - Melt 3 Tinner Rivets from “Spice Rack” bag into spice rack.

Figure 11 - Super Glue Magnets into main body.

Figure 12 - Magnetize Cartridge to main body

Spice Rack

  1. Melt 3 Tinner Rivets from “Spice Rack” bag into spice rack (Figure 10).

  2. Super Glue Magnets into main body (Figure 11).

  3. Magnetize Cartridge to main body (Figure 12).

Figure 13 - Melt two M3 threaded inserts from “Hinge” bag into main body.

Figure 14 - Plug in USB-C cable.

Figure 15 - Screw M3 thumb screws through harness, main body, and front cover.

Hinge

  1. Melt two M3 threaded inserts from “Hinge” bag into main body (Figure 13).

  2. Plug in USB-C cable (Figure 14).

  3. Screw M3 thumb screws through harness, main body, and front cover (Figure 15).

Figure 16

Figure 17

Figure 18

Figure 19

Figure 20

Straps and Buckles

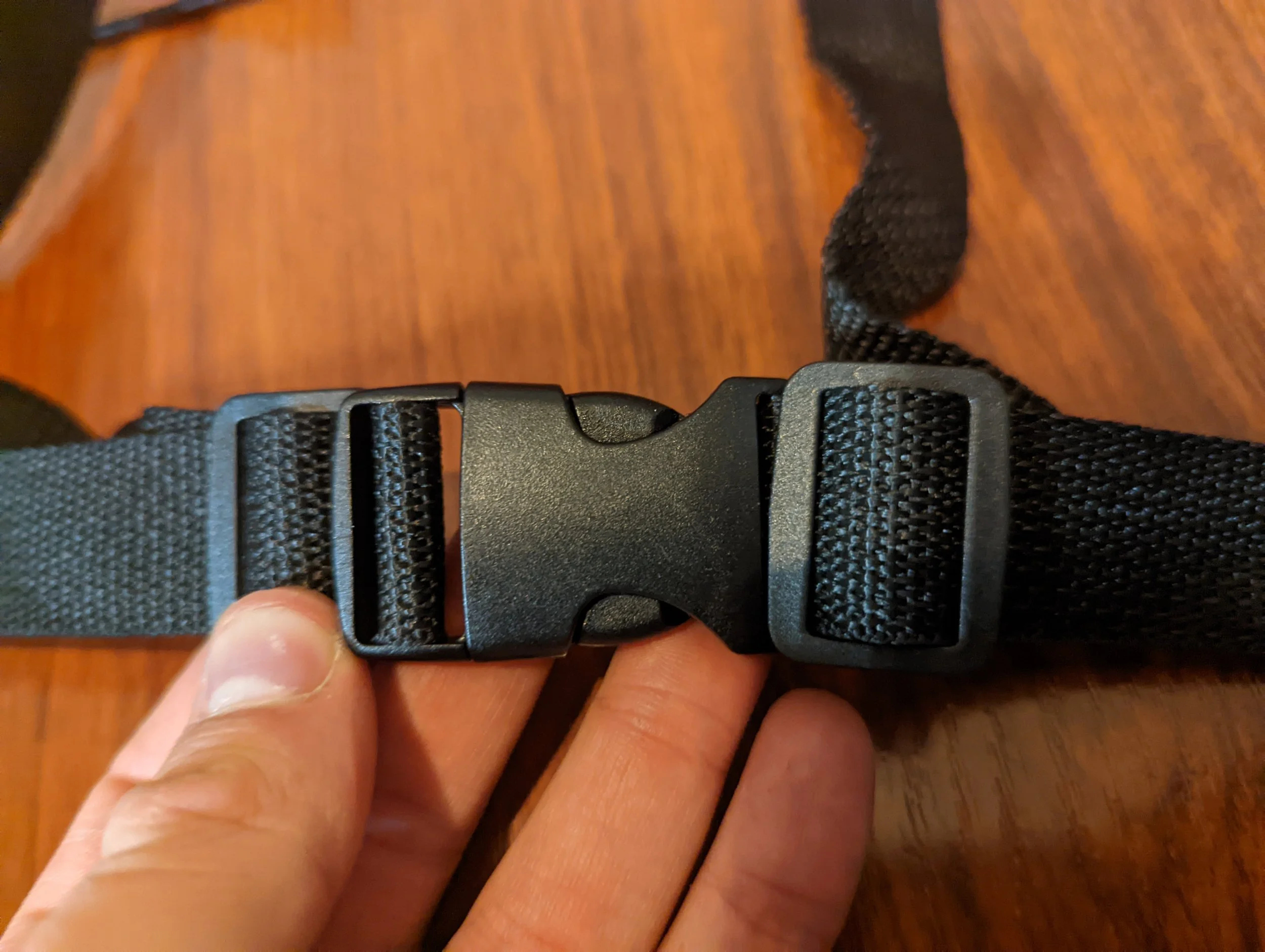

  1. Connect Straps to harness with Buckles and Tri-Glide Slides as shown in Figure 16-20.

Figure 21 - Insert scent bottles into spice rack.

Figure 22 - Insert spice rack into Micro Cilia.

Scent Bottles

  1. Insert scent bottles into spice rack (Figure 21).

  2. Insert spice rack into Micro Cilia (Figure 22).

Figure 24 - Put on Micro Cilia!

Put on Micro Cilia (Figure 24)!
